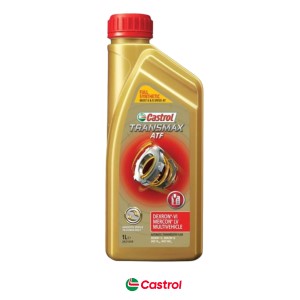

Transmission oil Castrol Transmax ATF Dexron-VI Mercon LV Multivehicle – 1L _ 469842

Description

Product Description

Automatic transmissions have become more complex than ever, and now automatic transmission fluids have to meet enormous demands. In fact, it’s no exaggeration to say that the automatic transmission is the most complex mechanical component in a car. An automatic transmission combines electrical and mechanical systems, hydraulic systems and a computer processor to smoothly shift gears and transmit engine power to the wheels.

There are three basic types of automatic transmissions used worldwide. These include the Dual Clutch Transmission (DCT), the Continuously Variable Transmission (CVT), and the most commonly used, especially in the United States, step-type transmissions. A step-type transmission consists of several major components. The pump supplies pressurized transmission fluid that is used for several purposes within the transmission. A planetary gear set applies a selected gear reduction ratio to the vehicle. A clutch (or ‘clutch pack’) is responsible for engaging and disengaging a set of gears. The torque converter connects the transmission to the engine and multiplies the torque during initial acceleration. The two turbines used by the torque converter rotate individually but are fluid coupled, allowing the engine to idle when the engine is stopped and making acceleration even smoother when shifting through gears. Finally, Mechatronics is the ‘brain’ of the transmission, a complex system of multiple ports, valves and electronics that control all transmission functions.

One of the key components in making these parts work well together in the overall system is the automatic transmission fluid (ATF). Automatic transmission fluid acts as hydraulic fluid for clutch pack engagement and gear shifting. It also acts as a corrosion inhibitor and provides anti-wear performance for planetary gear sets. Even within sophisticated valve assemblies, it must flow easily from -40 degrees Celsius to over 200 degrees Celsius. The ATF must be able to precisely control the friction within the clutch pack and maintain that control throughout the change cycle. That is perhaps the most important attribute of ATF in providing lubrication to hundreds of moving parts even under conditions of high temperature and extreme pressure. Therefore, using the proper ATF is a determining factor in transmission performance and life.

Castrol TRANSMAX ATF DEXRON®-VI MERCON® LV Multivehicle is a product applied to 4-9-speed automatic transmissions. It is a 100% synthetic automatic transmission oil that meets the viscosity and stringent industry standards required by world-renowned automobile and transmission manufacturers. For more detailed information, please refer to the Specifications and Grades section of this product manual and the recommended specifications for transmission oil in your vehicle manual.

Additional information

For OE number: 469842

Applicability: Automatic Transmission

Oil Composition: Synthetics

Product line: ATF

ATF specification:

• ATF VI

Recommended replace interval [km]: 50.000

Manufacturer Recommendation:

• GM DEXRON® – VI (J-60172)
• Ford MERCON® LV (MLV 141001); Suitable for JASO 1A (03); JASO 1A LV (13)
• Suitable for use where is required including:
• Toyota T III, T IV, WS
• Mitsubishi SP II, IIM, III, IV, PA, J3
• Mazda ATF M-III, MV, FZ
• Honda/Acura DW-1, Z-1
• Nissan Matic D, J, S; JWS 3314/3317/3309
• Suzuki AT Oil 5D06, 2384K
• Isuzu; Subaru F6, Red 1
• Daihatsu AMMIX ATF D-III Multi, D3-SP
• Hyundai/Kia SP III, SP IV, SP IV-RR
• Also suitable for use in 6, 8 and 9-speed automatics from Audi, BMW, Mini-Cooper, Jaguar, Peugeot/Citroen, Saab, Volvo, VW, Porsche. 7 and 9 speed automatics from Mercedes Benz and all vehicles where Dexron III or Mercon SP is required.

Manufacturer Approvals:

• MERCON LV
• Ford MERCON^® LV
• GM DEXRON^® -VI
• JASO 1 A LV (13)

Oil: Synthetic Oil

Product Group: Transmission Oils

Colour: Red

Content [litre]: 1L / 1.06 US-Quarts

Packing Type: Plastic canister

Weight [kg]: 0.89

Condition: new

/

Manufacturer: Castrol

Castrol Part Number. 469842

OE & OEM Part’s: (Original Equipment & Original Equipment Manufacturer):

• AISIN Part Number: ATF-92001, ATF-91001, ATF-92005
• BIZOL Part Number: 28750, 27310, 27311, 28751
• Blue Print Part Number: ADG05531
• Castrol Part Number: 15D73A, 1550C4,
• CHAMPION Part Number: –
• EUROLUB Part Number: 370001, 387001, 376001
• febi bilstein Part Number: 32600, 32605
• HEPU Part Number: –
• KRON Oil Part Number: 32224, 32219,
• Liqui Moly Part Number: 3687, 20461, 20662,
• MEYLE Part Number: 014 019 2500, 014 019 2900,
• MOTUL Part Number: 103217, 109394, 105774
• SWAG Part Number: 20 93 2605, 30 93 9096
• TRUCKTEC Part Number: 88.25.008
• VAICO Part Number: V60-0131, V60-0345
• Valvoline Part Number: 866885
• ZF Part Number: S671.090.312, AA01.500.001

Item No. 4008177161735

Dim. (L * H * W): 27.30*14.80*6.50

Weight : 0.89kg

Quality: OEM

Made in Korea South

Before you purchase the product, make sure that this part fits your car!
